Flat Surface Labeling Machine

Home
Products
Flat Surface Labeling Machine

Self-Adhesive Labeling Machines

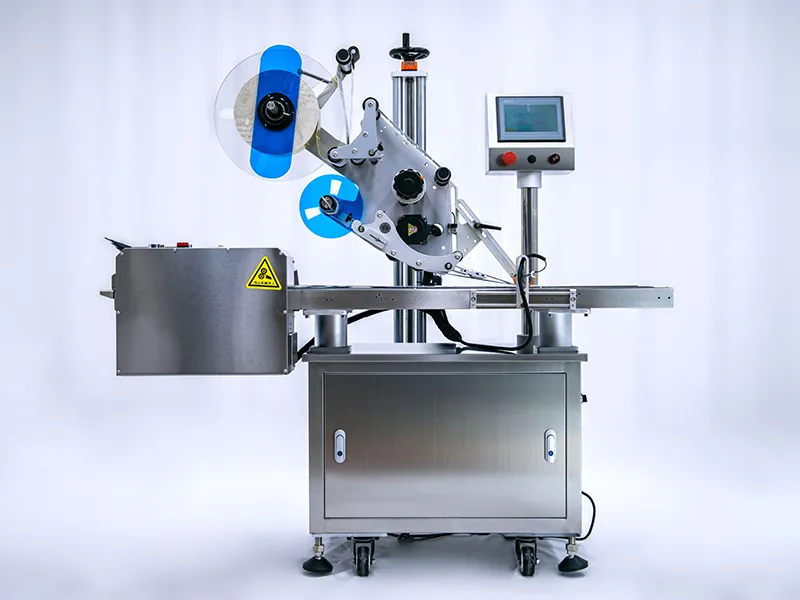

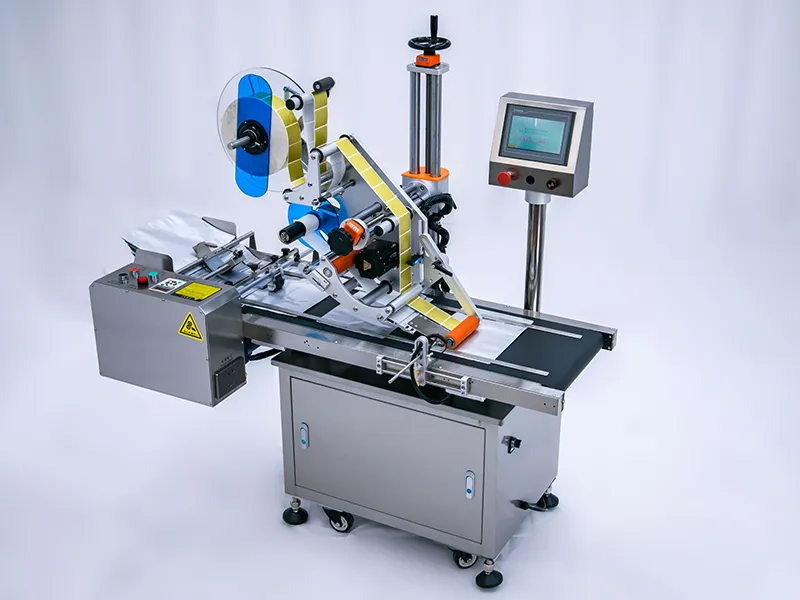

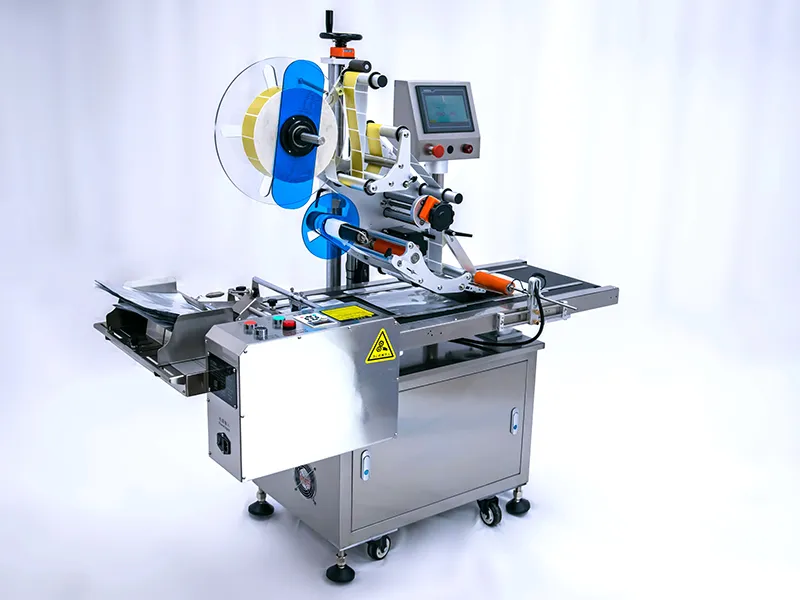

Automatic top labeling machine for applying self-adhesive labels on flat products

This flat surface labeling machine is designed to keep your production process smooth and accurate! With its vacuum conveyor belt, your materials stay securely in place during transport, eliminating any risk of shifting. You can easily print serial numbers, dates, times, or fixed data in real-time, and there’s even an option for automatic label replacement to handle your unique production needs. Whether you’re running a standard production line or have special requirements, this labeler is built to adapt. Contact us to discuss how it can bring more stability and efficiency to your operations!

Request a Quote

Labeling Speed
20 to 200 Products Per Minute
Machine Dimensions (L×W×H)
2000×650×1600mm

Specifications

Machine Dimensions (L×W×H) 2000×650×1600mm
Conveyor Belt Height From Ground 780mm
Conveyor Belt Width 300mm
Labeling Speed 20-200pcs/min (depending on bottle diameter and label length)
Applicable Product Height 30-200mm
Label Height Range 20-135mm
Label Length Range 20-300mm
Labeling Accuracy ±1mm (excluding package and label errors)
Inner Diameter of Label Roll 40mm/76mm
Outer Diameter of Label Roll ＜ 360mm
Power Supply 220V 50/60HZ 1.5kW
Machine Weight 180kg

Applications

Industries and Applications: This labeler is mainly designed for labeling stacked flat packaging materials across various industries, including pharmaceuticals, food, electronics, and printing. It works perfectly with items such as cartons, boxes, flat boxes, cardboard sheets, and cards.
Specialized Labeling: Our flat surface labeling machine is especially ideal for applying labels on unopened packaging boxes, such as anti-counterfeit labels, logistics information labels, and electronic supervision code labels.

Features

Dual-Stage Clutch Design: Ensures more stable label tension, improving labeling accuracy.

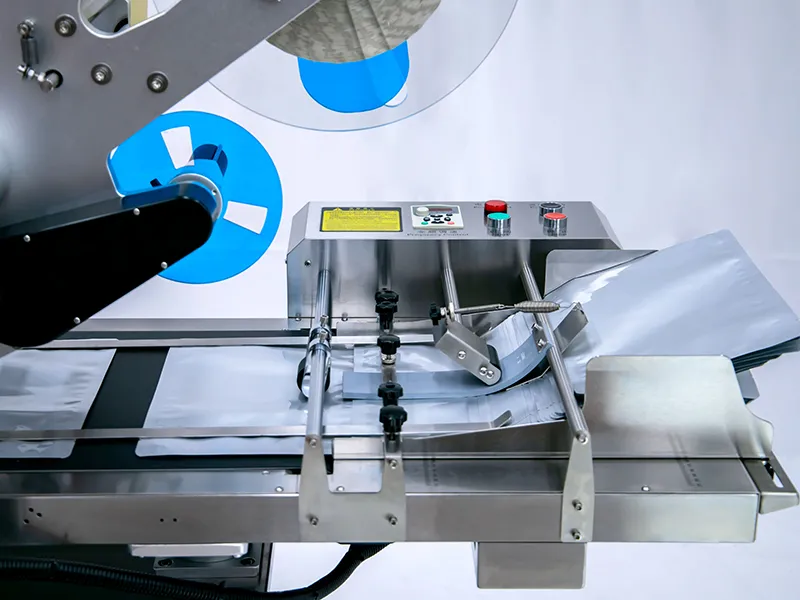

Belt Conveyor: Suitable for flat labeling of various products. Optional product clamping or labeling molds can be added for even higher precision.

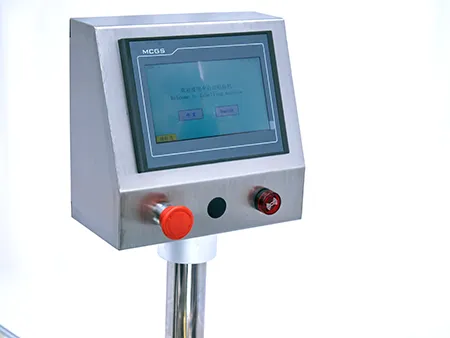

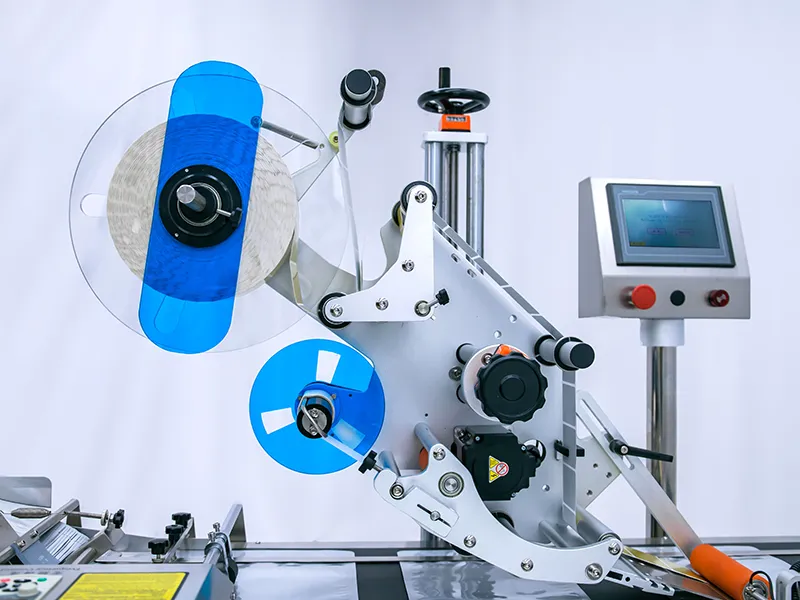

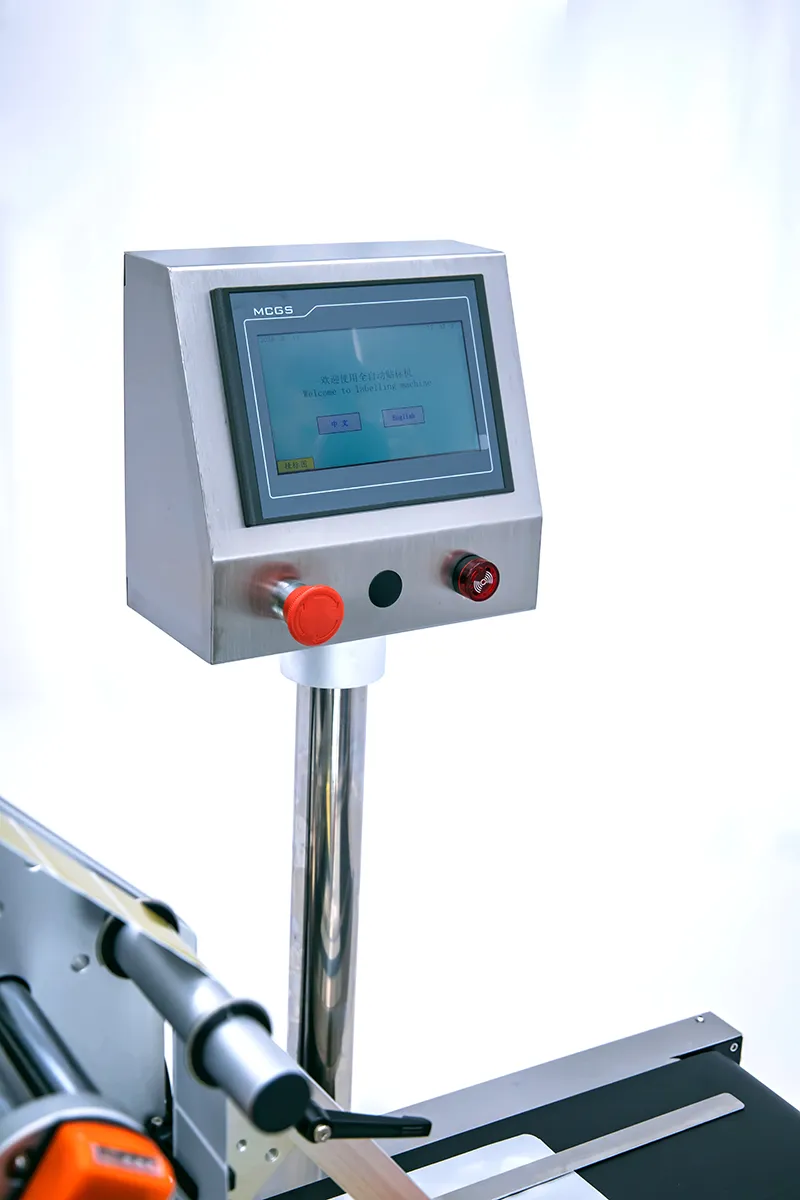

Imported Servo Motor: Drives the label dispenser for consistent speed and accuracy. The user-friendly touch screen can store up to 50 labeling parameters and features intuitive operation with extensive online help functionality.
Premium Electrical Components: Equipped with internationally recognized brand electrical parts, and all materials comply with GMP standards, ensuring long-term stability and reliability.

Configurations

Optional Printing Equipment: Compatible with Zebra PAX, 105SL print engines, and various leading brands of coding and printing systems.
Missed Print Detection and Rejection: Optional device to ensure the accuracy of printed content by detecting and rejecting incomplete or missing prints.

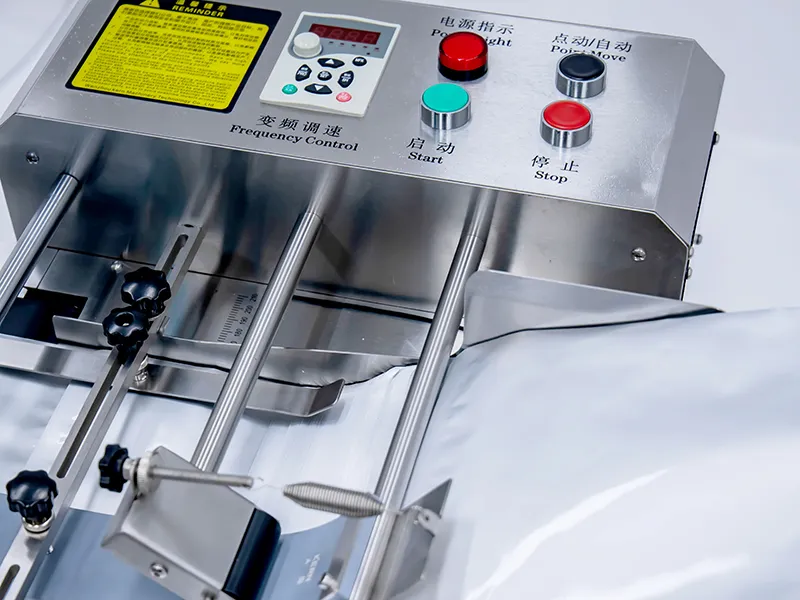

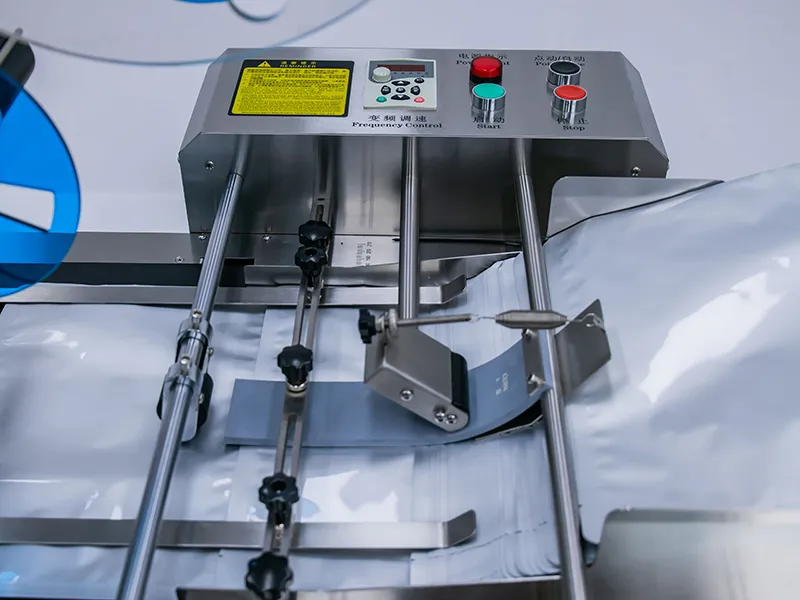

Automatic separation: Optional configuration for smooth product separation and feeding.

Videos

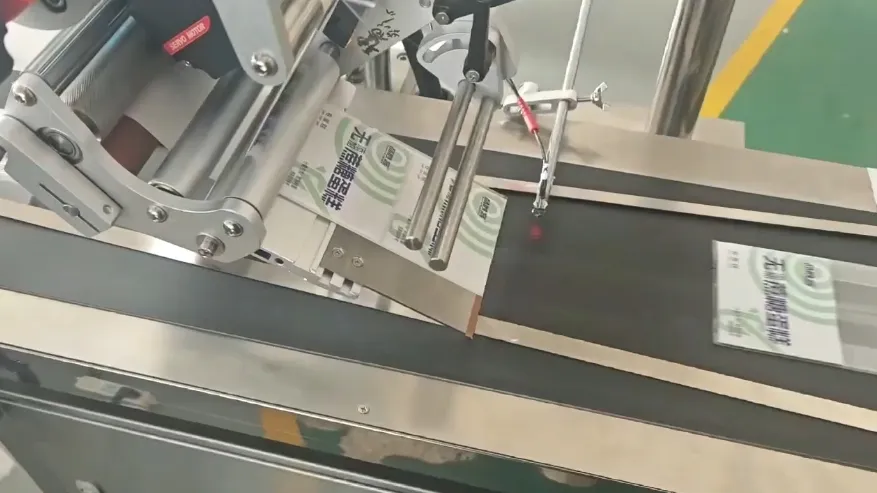

Flat Surface Labeling Machine

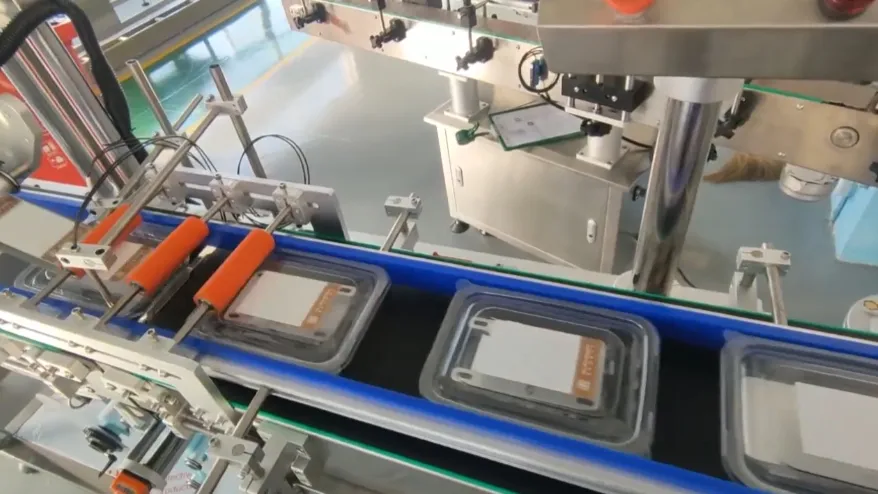

Top Labeling Machine

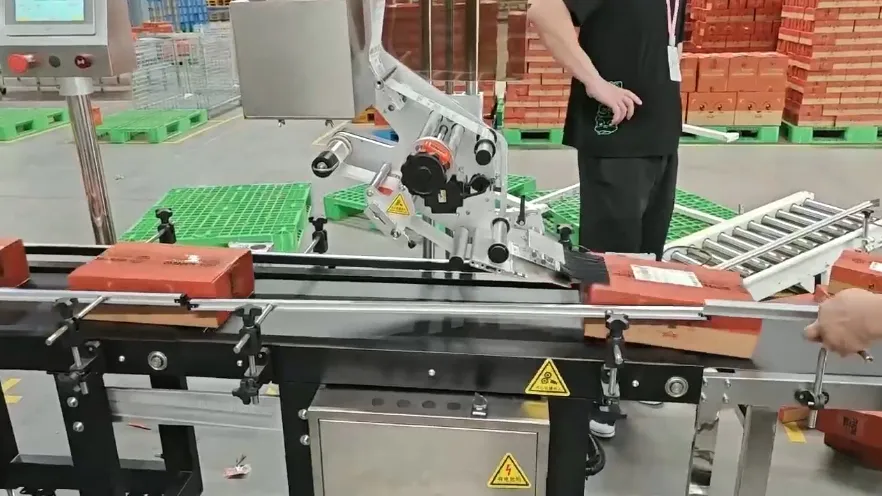

Carton Labeling Machine for Three Squirrels Snack Food Company

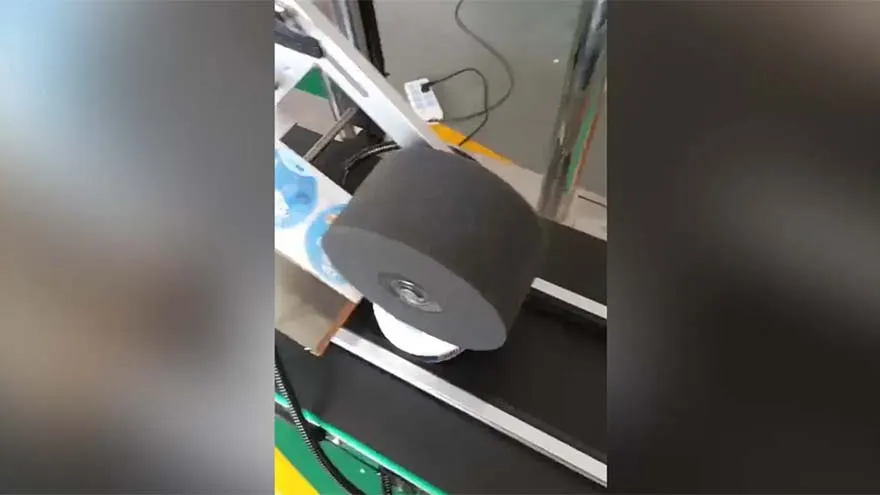

Flat Surface Labeling Machine for Plastic Cream Jars

Have questions? Get in touch with us.

Fill in the required fields and let us know your specific needs—we'll respond as soon as possible.

Email: lishenghuianla@hotmail.com
Mobile: +86-13818525998

Labeling

Other Automatic Labeling Machines

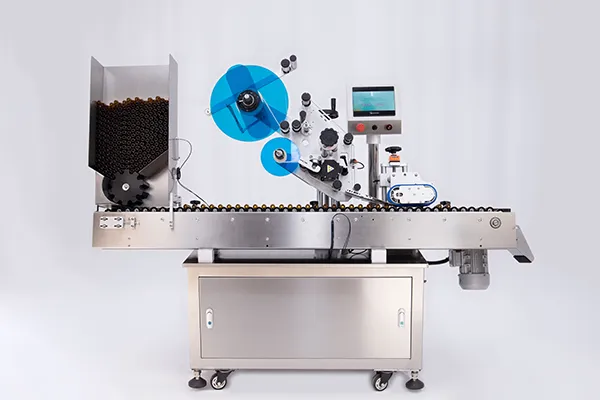

Horizontal Labeling Machine
