Wrap Around Labeling Machine (3-Roller)
3-Roller Wrap Around Labeling Machine
3-Roller Wrap Around Labeling Machine 3-Roller Wrap Around Labeling Machine 3-Roller Wrap Around Labeling Machine

Self-Adhesive Labeling Machines

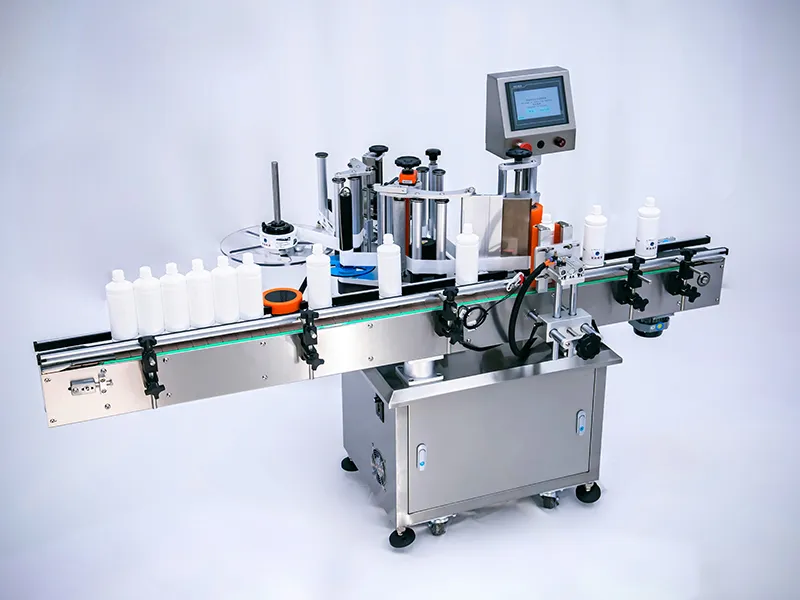

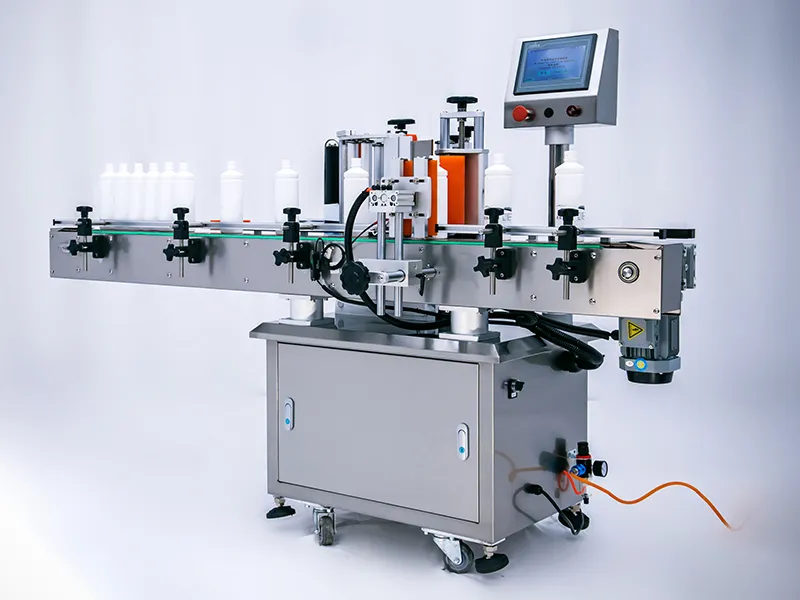

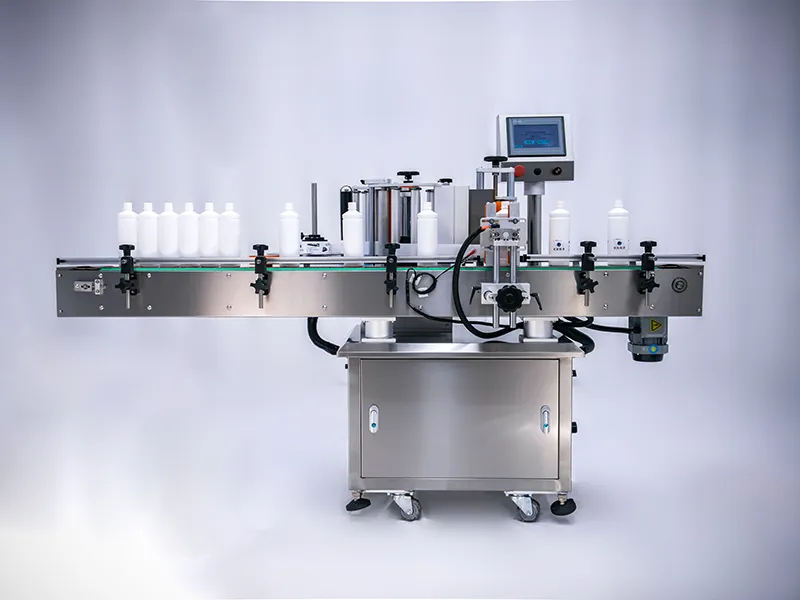

3-Roller Wrap Around Labeling Machine

Automatic round bottle labeler for applying self-adhesive labels on cylindrical products

The 3-roller wrap around labeling machine is designed to make your labeling process precise and hassle-free. With automatic photoelectric tracking, it ensures accurate labeling every time. Its advanced features, like no-labeling detection, automatic label correction, and label detection, help prevent missed labels and reduce waste. Whether you need to label 20 or up to 120 bottles per minute, this machine can handle it with ease. It’s perfect for products ranging from 30–280mm in size, and if you have unique dimensions, we can customize the machine to fit your exact needs. Reach out to us today, and let’s talk about how this solution can simplify your production line and save you time!

Request a Quote
  • Labeling Speed

    20 to 120 Products Per Minute

  • Machine Dimensions (L×W×H)

    2000×1200×1300mm

Details
  • More Images About Labeling Machine
  • More Images About Labeling Machine
  • More Images About Labeling Machine
  • More Images About Labeling Machine
  • More Images About Labeling Machine
  • More Images About Labeling Machine
  • More Images About Labeling Machine
  • More Images About Labeling Machine
Specifications
  • Machine Dimensions (L×W×H) 2000×1200×1300mm
  • Conveyor Belt Height From Ground 810mm
  • Conveyor Belt Width 101.6mm
  • Labeling Speed 20-120pcs/min (depending on bottle diameter and label length)
  • Container Height 30-280mm (self-standing container)
  • Container Diameter 20-101mm
  • Label Height Range 15-135mm
  • Label Length Range 20-300mm
  • Labeling Accuracy ±1mm (excluding package and label errors)
  • Inner Diameter of Label Roll 40mm/76mm
  • Outer Diameter of Label Roll ＜360mm
  • Power Supply 220V 50/60HZ 1.5kW
  • Machine Weight 180kg
Applications

Sanyou’s 3-roller wrap around labeling machine is ideal for applying labels to the circumference of round objects. It supports both single and double labels, with adjustable spacing for front and back labels. This machine is widely used in industries such as cosmetics, food, and pharmaceuticals. Examples include:

  • Cosmetics: Side labeling for round packaging like lip balm tubes and various cosmetic bottles.
  • Food and Beverage: Labeling round bottles and cans for beverages and canned products.
  • Pharmaceuticals: Labeling round packaging for reagents and medicines.
More Images About Labeling Machine
Features

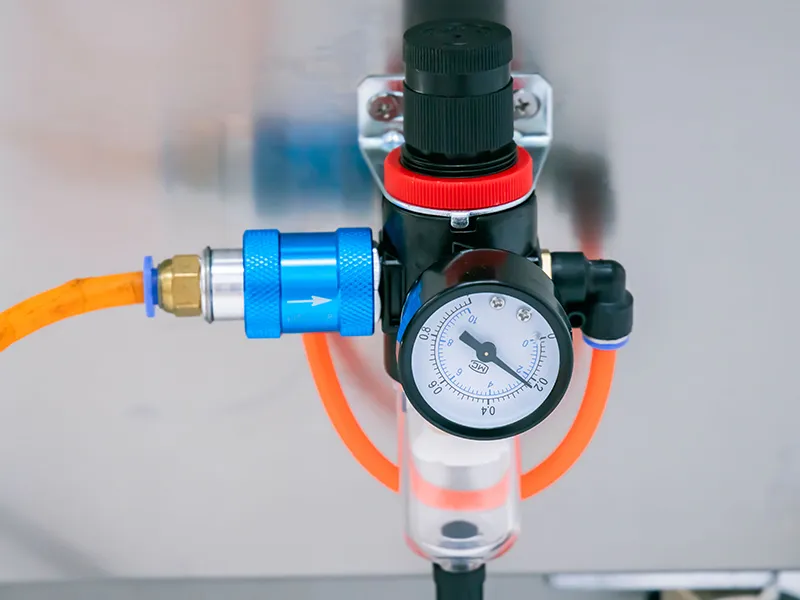

  • Comprehensive Labeling Capability: Equipped with a pneumatic system and intelligent pressure sensing for high-quality labeling without damaging products.
  • Dynamic and Static Labeling Modes: Easily switches between intermittent and continuous production to enhance productivity.
  • Smart Control System: Features automatic photoelectric tracking with no-labeling detection, automatic label correction, and label detection to prevent missed labels and reduce waste.
  • Secure Adhesion: Handles labels of varying specifications with a single size setup, eliminating the need for additional components or machine changes.
  • Independent Controller: Ensures stable and reliable operation.

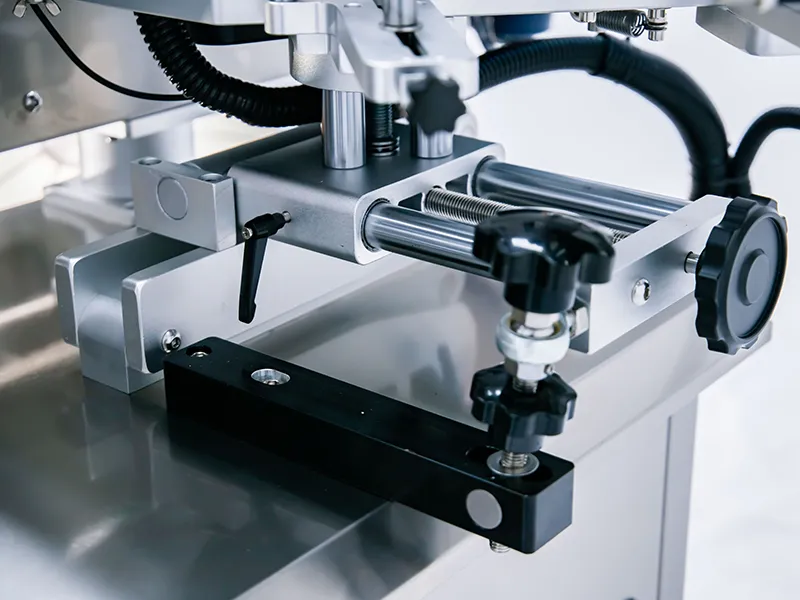

  • Durable and Robust: Built with a three-rod adjustment mechanism, leveraging the stability of a triangular structure for a solid and long-lasting machine.

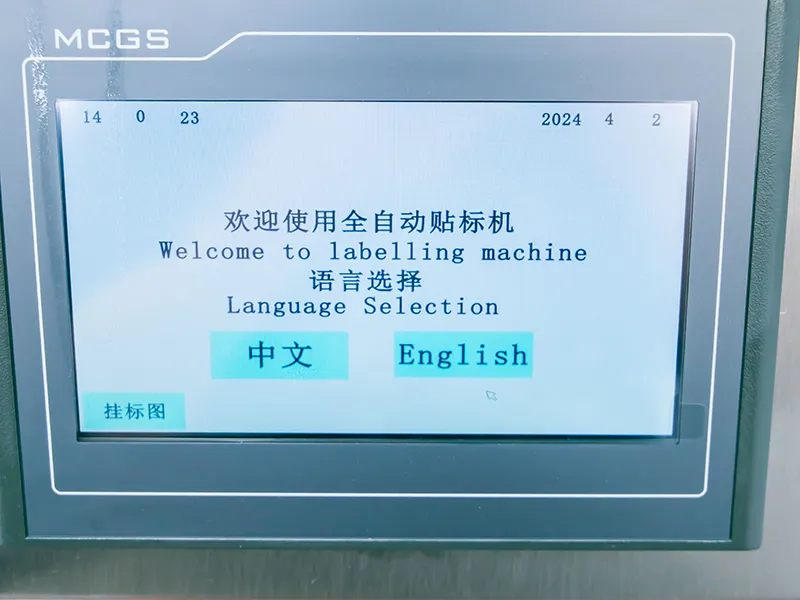

  • Advanced Human-Machine Interface: Features online help and intuitive interaction, making operation simple and easy to learn.
More Images About Labeling Machine
Standard Configurations
  • Automatic label unwinder: Used for automatic feeding of labels to ensure uninterrupted production and minimize label waste.

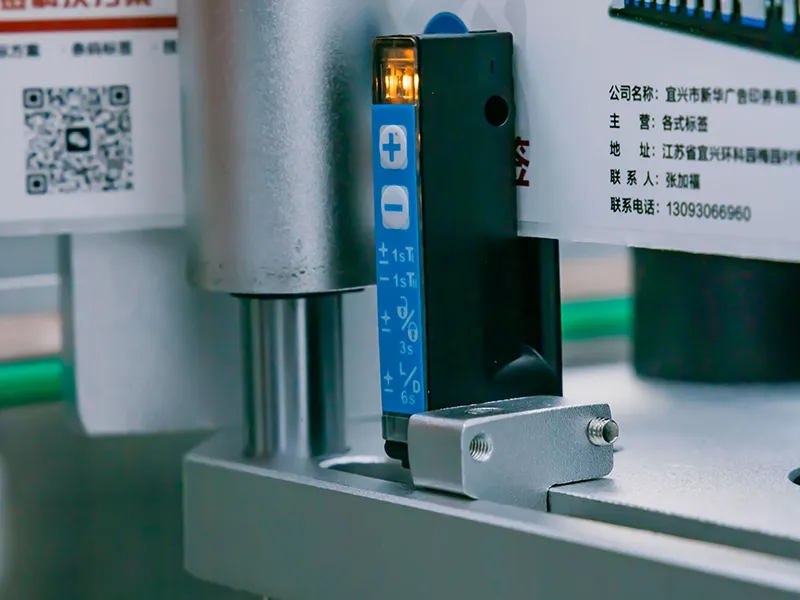

  • Precise positioning control: Uses photoelectric cells or other sensors to detect the positions of bottles and labels in real-time, ensuring accurate label application.

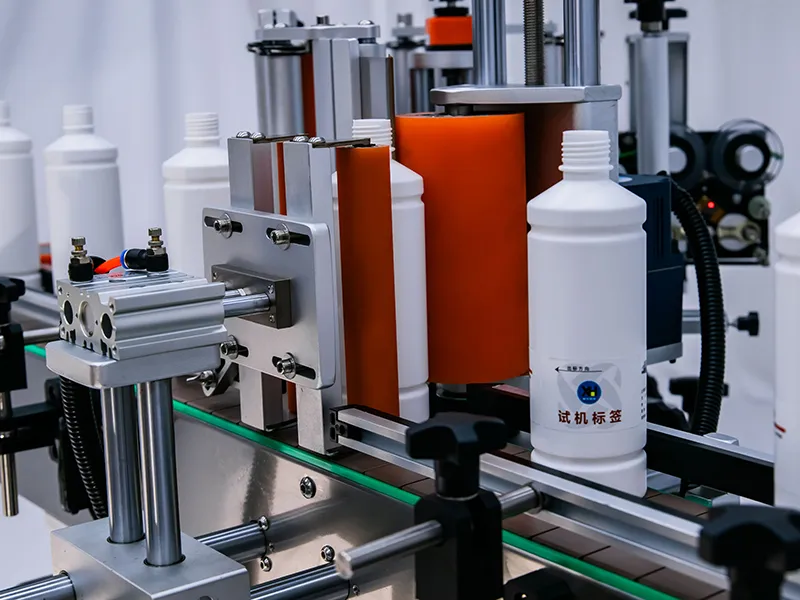

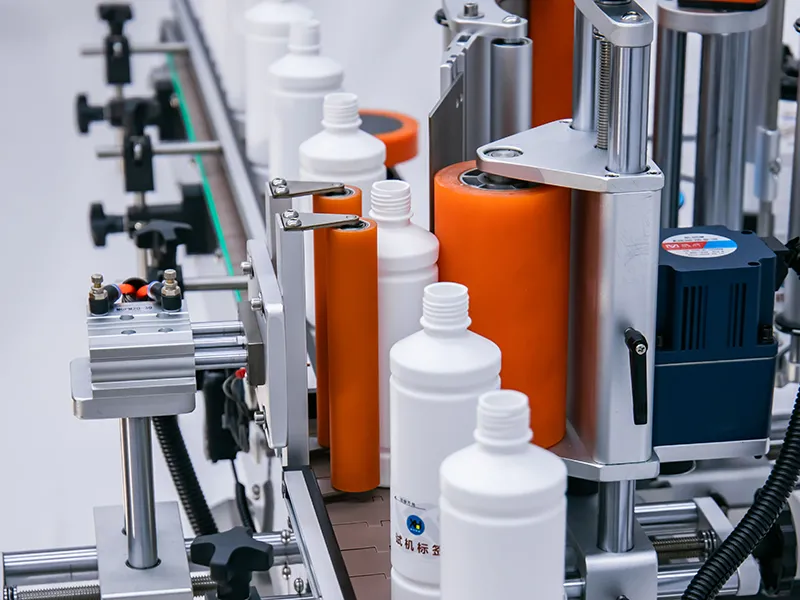

  • Pneumatic rollers: Securely press labels onto bottles or containers after application, preventing bubbles or wrinkles.
  • PLC control: Provides precise control through a programmable logic controller (PLC) with easy operation and adjustments via a touchscreen interface.
  • Label alignment device: Ensures labels stay properly aligned during application to maintain high labeling quality.
  • Reject system: Automatically removes defective products when errors or labeling issues are detected, ensuring a high production pass rate.
Optional Configurations
  • Top label applicator: ideal for products requiring labels on multiple positions or for labeling bottle caps.

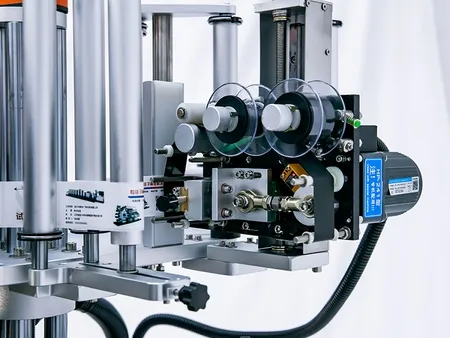

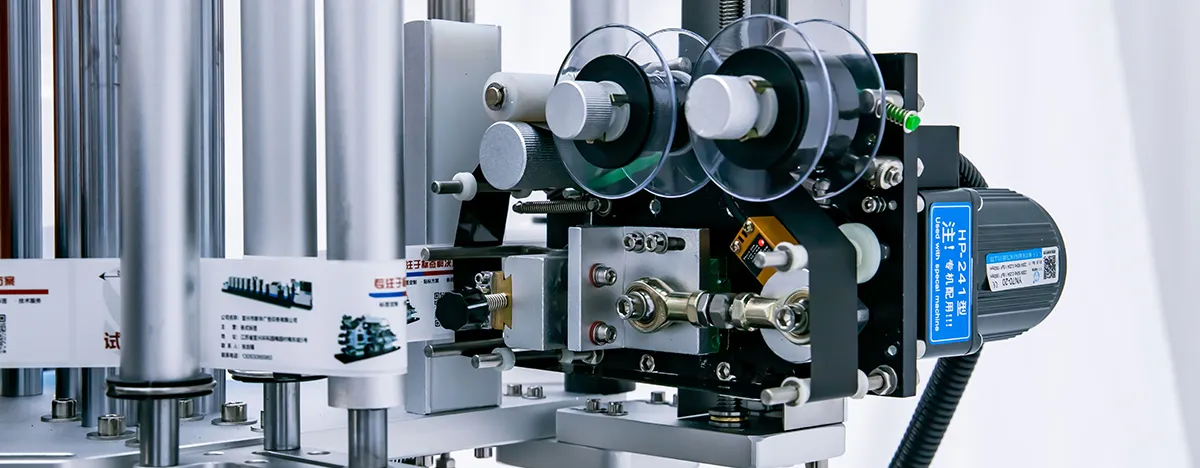

  • Inline printing unit: integrates thermal transfer printers or inkjet markers to print production dates, batch numbers, barcodes, and more directly on labels
  • Rotating starwheel: ensures smooth and precise labeling by automatically rotating round or irregularly shaped bottles.
  • Index rotary table: adds a bottle separation device for complex bottle shapes or specific production line requirements, ensuring even distribution at the labeling station.
  • Automatic rejection system: automatically removes defective products if labeling errors or misaligned labels are detected.
  • Support for diverse bottle shapes: customizable conveyor systems, separation devices, and labeling heads to accommodate various bottle sizes and shapes.
  • Special label requirements: tailored solutions for special label types like clear, heat-shrinkable, or eco-friendly labels to ensure high-quality application.
  • High-efficiency customization: designed for high-speed production to meet specific production capacity demands.
  • Labeling automation and integration: smoothly integrates with other packaging equipment like cartoners, sealers, checkweighers, and palletizers to form a complete automated production line, reducing manual operations.
  • Compliance with industry standards: customizable to meet specific hygiene, quality, and safety standards for industries like pharmaceuticals, food, and cosmetics, with options like explosion-proof devices.
  • Custom materials for safety: for industries requiring high hygiene levels, such as food and pharmaceuticals, our equipment can be customized with stainless steel or food-grade materials.
  • Explosion-proof device: adds explosion-proof features for specialized industries.
  • Multi-dimensional adjustable screen: offers eight-dimensional adjustments for the operation screen, enhancing convenience during use.
Videos

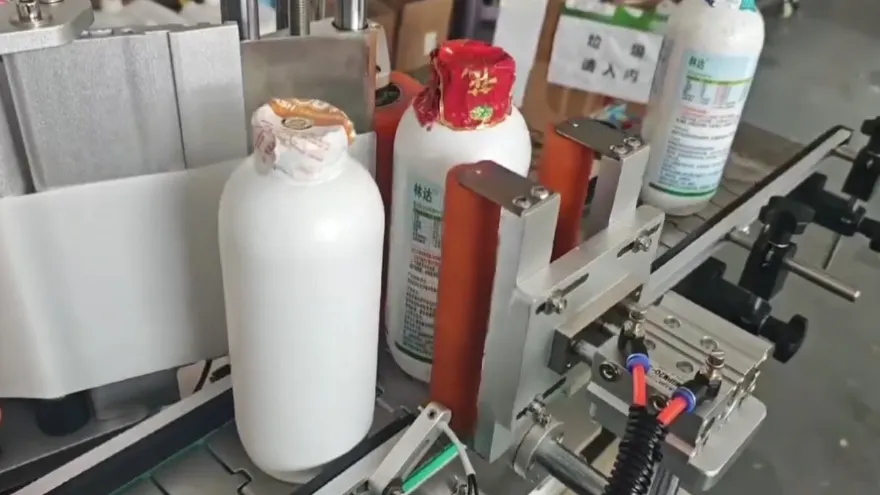

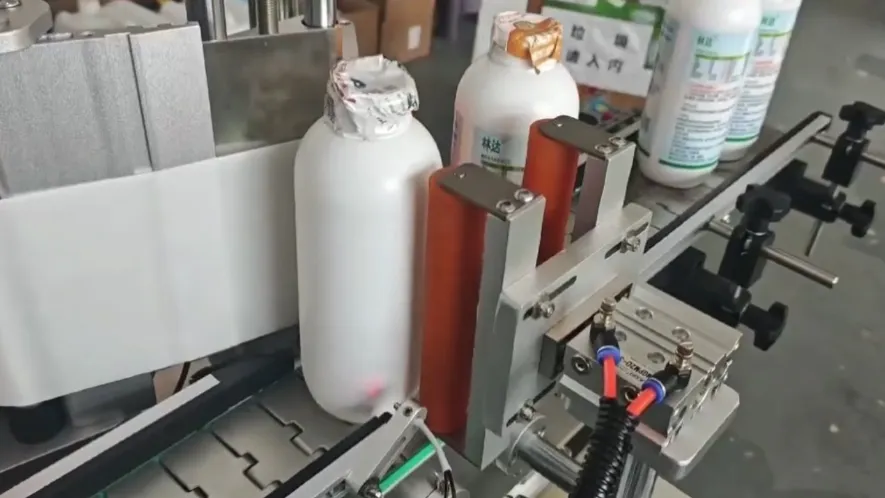

3-Roller Wrap Around Labeling Machine
